Terbium

Lore & Background

The element, along with yttrium, erbium, and ytterbium, is named after the village of Ytterby in Sweden. Mosander first separated yttria into three fractions: yttria, erbia, and terbia. Originally, 'erbia' was the fraction containing the pink color due to what is now known as erbium, while 'terbia' contained what is now known as terbium. Terbium was not isolated in pure form until the development of ion exchange techniques.

Reader's Guide

Terbium is significant primarily for its use in green phosphors, which account for most of the world's supply. Terbium oxide is used in fluorescent lamps and television and monitor cathode-ray tubes (CRTs). Combined with divalent europium blue phosphors and trivalent europium red phosphors, terbium green phosphors provide trichromatic lighting technology, a high-efficiency white light used in indoor lighting. Terbium is also a component of Terfenol-D, an alloy that expands and contracts when exposed to magnetic fields more than any other alloy, making it useful in actuators, naval sonar systems, and sensors. Additionally, terbium is used to dope calcium fluoride, calcium tungstate, and strontium molybdate in solid-state devices, and as a crystal stabilizer of fuel cells that operate at elevated temperatures. Terbium is considered non-hazardous, though its biological role and toxicity have not been researched in depth.

Did You Know?

• Terbium is named after the village of Ytterby in Sweden, along with yttrium, erbium, and ytterbium.
• Terbium was not isolated in pure form until the advent of ion exchange techniques.
• Terbium is used in Terfenol-D, an alloy that expands and contracts when exposed to magnetic fields more than any other alloy.

Discovery & Historical Context

Swedish chemist Carl Gustaf Mosander first identified terbium back in 1843, spotting it as a contaminant within yttrium oxide. The element shares its naming origin with several other rare earths—yttrium, erbium, and ytterbium—all of which trace their names to the small Swedish village of Ytterby. Despite being recognized for nearly a century, terbium remained stubbornly difficult to isolate in pure form. It was not until the development of ion exchange techniques that chemists finally succeeded in obtaining the element in its unalloyed state. In nature, terbium never appears as a standalone metal; instead, it is embedded within a variety of minerals such as cerite, gadolinite, monazite, xenotime, and euxenite. As the ninth member of the lanthanide series, terbium carries atomic number 65 and the symbol Tb, occupying a place in the periodic table that reflects both its chemical kinship with its neighbors and its own distinctive electronic character.

Physical & Magnetic Properties

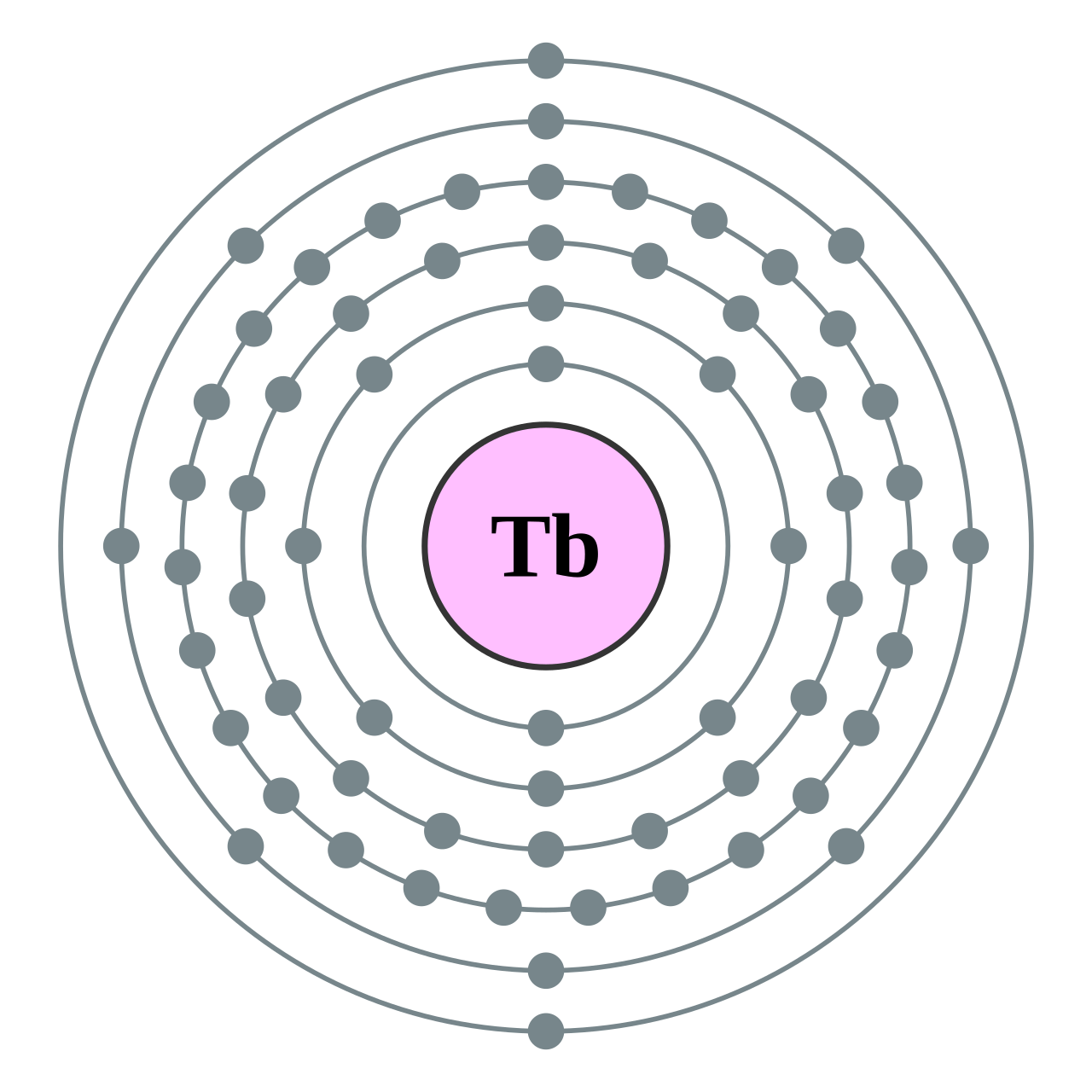

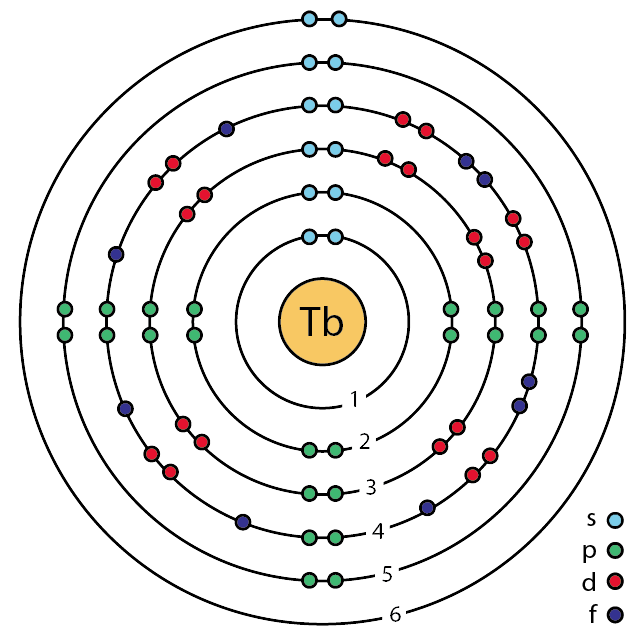

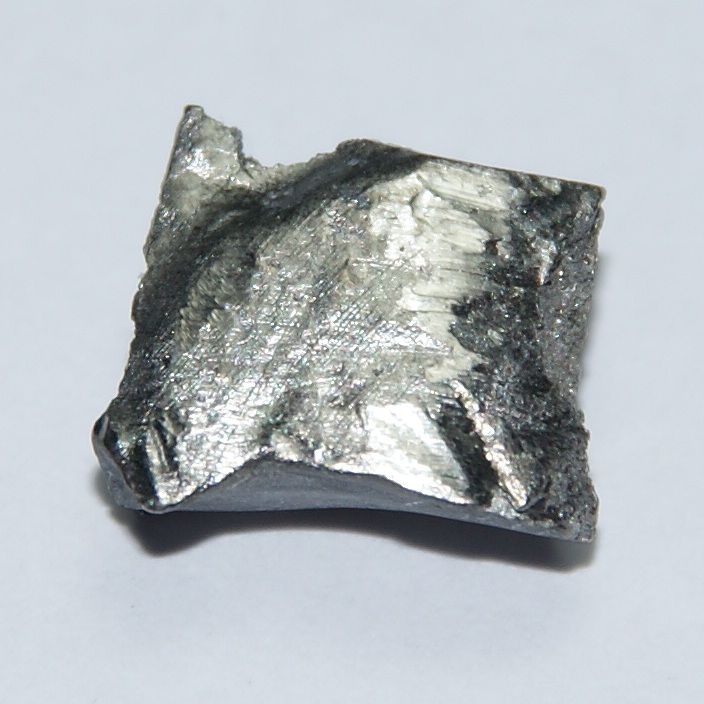

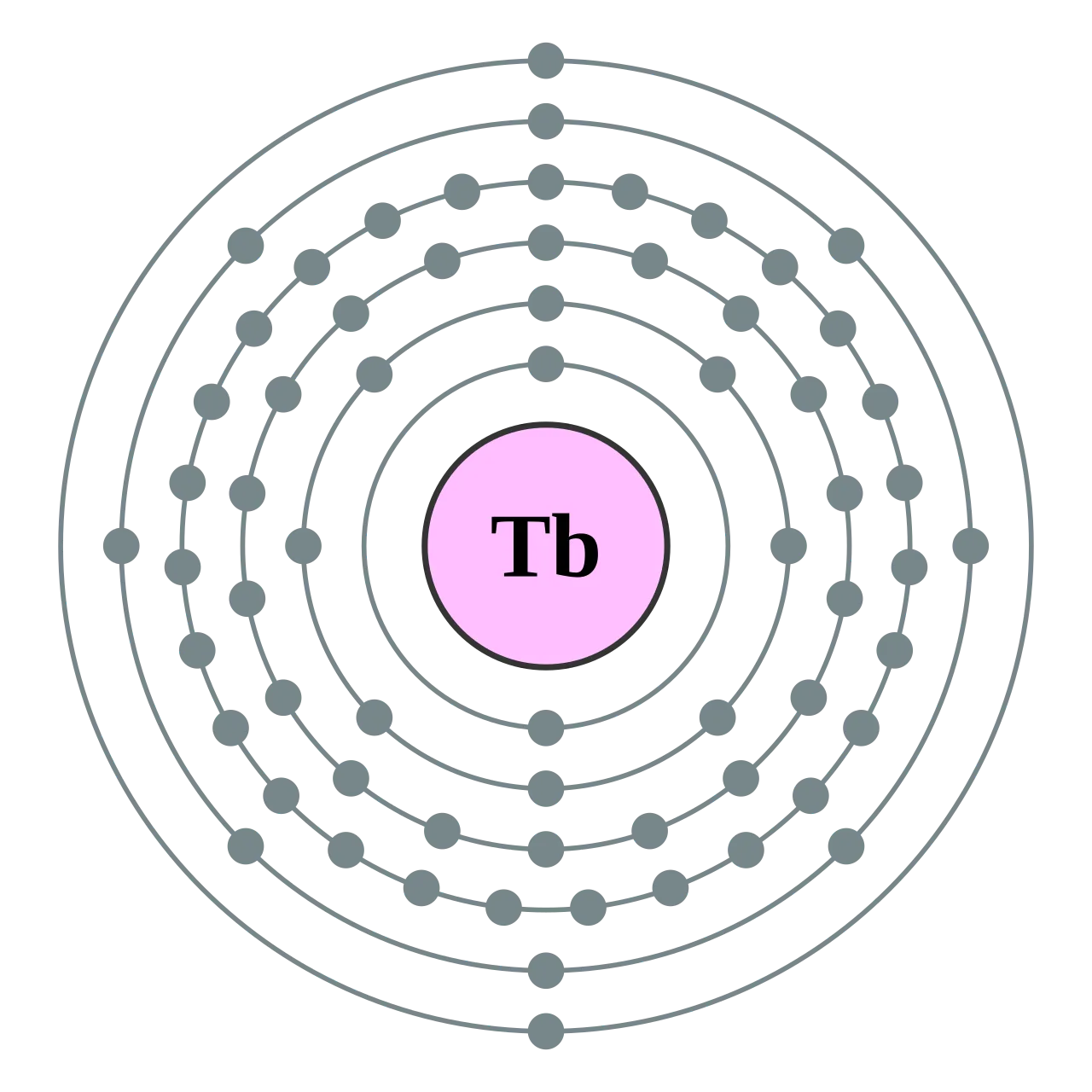

Terbium presents as a silvery-white metal that is soft enough to be sliced with a knife, yet it retains enough malleability and ductility to be worked into useful shapes. Among its lanthanide peers, it is comparatively stable in air, though it still readily oxidizes to produce a mixed terbium(III,IV) oxide. The element exists in two distinct crystal allotropes, with a phase transition occurring at 1289 °C. Its 65 electrons follow the configuration [Xe]4f96s2, with eleven valence electrons available for bonding. One of terbium's most remarkable traits is its magnetic behavior: below 219 K it exhibits simple ferromagnetic ordering, while between 219 K and 230 K it adopts a helical antiferromagnetic arrangement in which atomic moments within each basal plane align parallel to one another but sit at a fixed angle relative to neighboring layers. Above 230 K, this ordered structure dissolves into a disordered paramagnetic state. The Tb3+ cation is also notable for its brilliant lemon-yellow fluorescence, a combination of strong green emission with additional orange and red lines.

Chemical Reactivity & Oxidation States

Terbium is a fairly electropositive metal that reacts vigorously with water, releasing hydrogen gas, and it dissolves in sulfuric acid and all the halogens. In air, it oxidizes to form a mixed-valence oxide, Tb4O7. The dominant oxidation state is +3, seen in compounds like TbCl3, but terbium can also achieve a +4 state in the solid state—compounds such as TbO2 and TbF4 are known. The tetravalent fluoride is particularly notable for its powerful oxidizing and fluorinating properties; when heated it releases relatively pure atomic fluorine rather than a mixture of fluoride vapors. In aqueous solution, terbium typically remains trivalent, though ozone in highly basic conditions can push it to +4. Its coordination chemistry mirrors that of other lanthanides: in water it binds nine molecules in a tricapped trigonal prismatic geometry, while bulky ligands like bis(trimethylsilyl)amide can reduce the coordination number to just three. Rare +1 and +2 states have also been documented, with terbium(I) chloride forming platelets that resemble layered graphite in structure.

Applications & Technological Uses

The overwhelming majority of the world's terbium supply finds its way into green phosphors. Terbium oxide serves as the active material in fluorescent lamps and in the cathode-ray tubes of televisions and monitors. In trichromatic lighting technology, terbium green phosphors are paired with divalent europium blue phosphors and trivalent europium red phosphors to generate a high-efficiency white light widely used in indoor illumination. Beyond lighting, terbium is a critical component of Terfenol-D, a magnetostrictive alloy that expands and contracts under magnetic fields more than any other known alloy. This property makes it invaluable in actuators, naval sonar systems, and precision sensors. Terbium also dopes calcium fluoride, calcium tungstate, and strontium molybdate in solid-state devices, and it acts as a crystal stabilizer in fuel cells designed to operate at elevated temperatures. Despite these diverse applications, the element is considered non-hazardous, though its biological role and toxicity have not been studied in depth.
